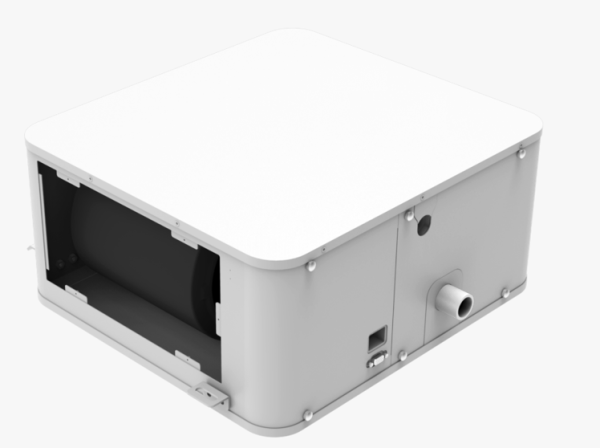

Rotary Evaporative Humidifier
Product Overview
Rotary Evaporative Humidifier is an industrial humidity control system based on rotating humidification media technology. Through continuous rotation of the humidifying wheel, the system releases moisture evenly into the airflow and provides stable humidity adjustment for industrial environments.
With compact structure, reliable operation, and precise humidity control, this humidification system is suitable for applications requiring stable humidity conditions, including electronics manufacturing, lithium battery production, cleanrooms, textile facilities, laboratories, and precision manufacturing.
Working Principle
The humidification wheel inside the system rotates continuously at a low speed.
When dry air passes through the humidification media, moisture is evenly transferred into the airflow through natural evaporation, creating humidified air without direct water spraying.
Combined with an intelligent control system, the humidifier automatically adjusts moisture output according to humidity requirements, preventing excessive humidity and fluctuations.
The system provides continuous and stable humidification performance for industrial applications.
Key Advantages
- Uniform humidification without local over-humidification
- No water mist, no white powder, and no secondary pollution
- Fast response and precise humidity adjustment
- Energy-efficient operation with low running cost
- Compact structure for flexible installation
- PLC and intelligent control system compatible
- Modular design for easy maintenance
Technology Comparison of Different Humidification Methods
| Humidification Method | Rotary Evaporative | Ultrasonic | Wet Film | Electrode | High Pressure Mist |
| Water Mist | No | Yes | No | Yes | Yes |
| Complete Evaporation | Yes | No | Yes | No | No |
| White Powder | No | Possible | No | Possible | Possible |
| Water Quality Requirement | Low | High | Low | High | High |
| Humidification Efficiency | High | Medium | High | Medium | Medium |
Technical Features
- Rotary humidification wheel design
- High efficiency evaporation media
- Adjustable humidification capacity
- Continuous stable operation
- Temperature and humidity linked control
- Suitable for different airflow systems
Applications
- Electronics manufacturing workshops
- Lithium battery production environments
- Textile constant humidity rooms
- Coating and painting production lines
- Cleanrooms and laboratories
- Anti-static storage areas
- Precision equipment manufacturing
Customized Specifications
The Rotary Evaporative Humidifier can be customized according to airflow requirements, installation conditions, and humidity control targets.
| Model | GZN-F900E | GZN-F1700E |
| Access Direction | L (Left) | L (Left) |
| Dimensions (mm) | 510×360×223 | 544×507×217 |
| Material | Metal + Coating | Metal + Coating |
| Voltage | 220V | 220V |
| Power | 32W | 45W |
| Noise Level | 28 dB | 34 dB |
| Airflow | 138 m³/h | 300 m³/h |
| Humidification Capacity | 900 ml/h | 1700 ml/h |
| Control | Panel / Smart Control / RS485 Communication | |
Customization Options
- Customized humidification capacity
- PLC intelligent control system
- Airflow matching design

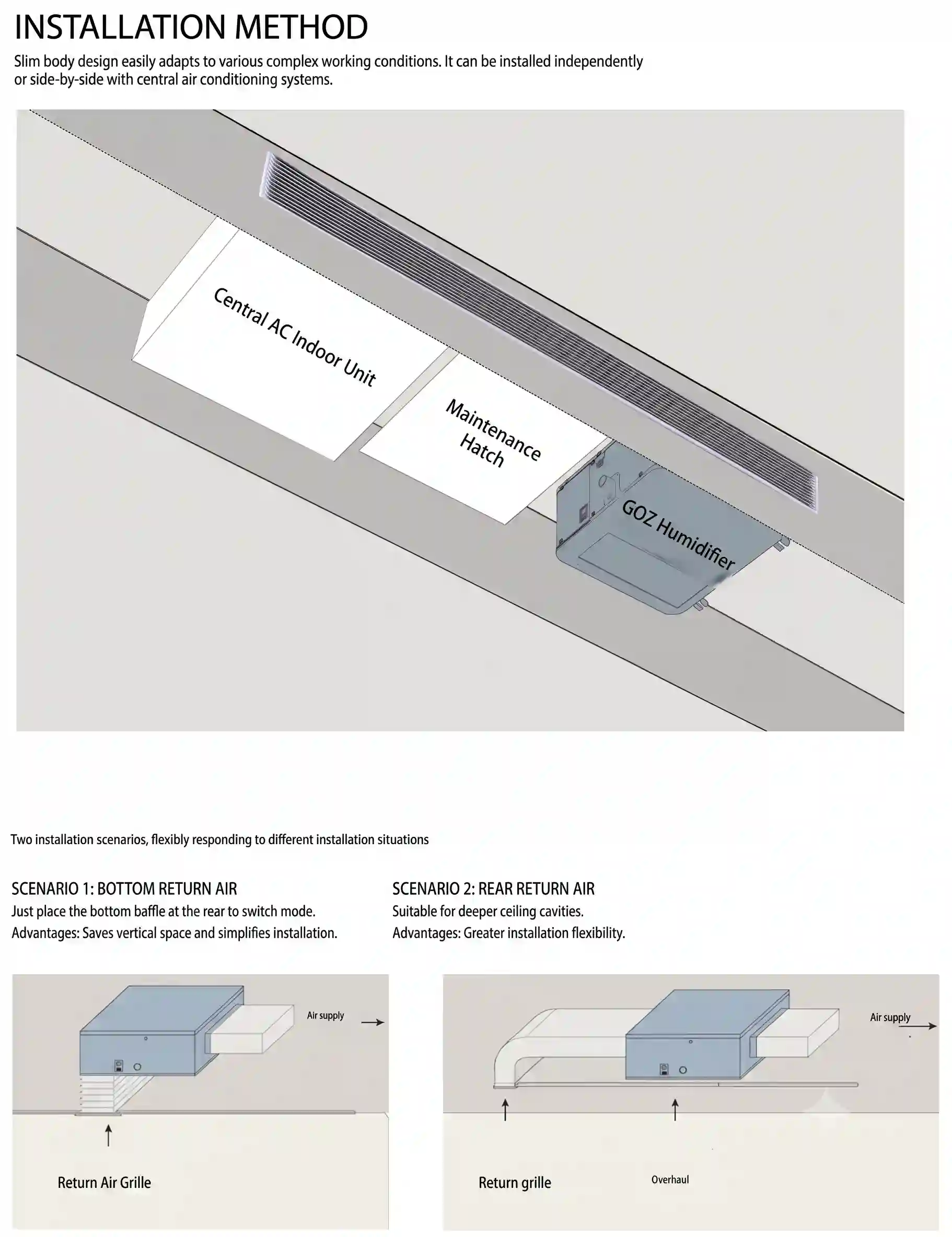

- Duct type, integrated type, and modular installation available
