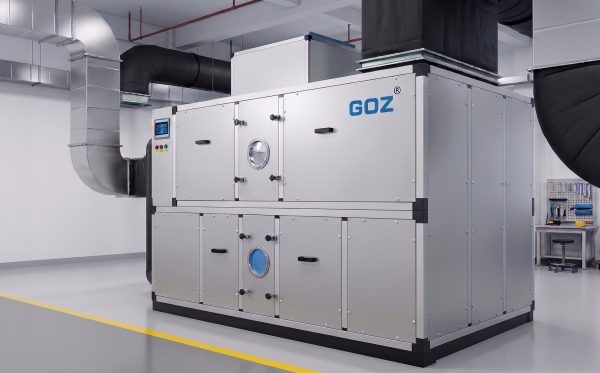

Modular Desiccant Rotor Dehumidification Unit | Desiccant Rotor Dehumidifier System
Desiccant rotor dehumidification unit with air filtration, cooling, heating, and PLC control. Provides precise temperature and humidity control for lithium battery, electronics, pharmaceutical, and industrial cleanroom applications.
It is designed to provide stable and continuous low humidity and low dew point environments for demanding industrial applications.
Using high-performance silica gel desiccant rotor technology, the system efficiently removes moisture from the air and ensures precise humidity control, making it ideal for processes requiring strict environmental conditions.
The system features a modular design that allows flexible configuration of fresh air sections, return air sections, pre-cooling, rotor dehumidification, regeneration heating, and post-conditioning sections.
It is widely used in lithium battery manufacturing, electronics production, pharmaceuticals, biotechnology, food processing, and precision manufacturing industries.
Product Parameters
| Main Parameters of ZCB Series Desiccant Dehumidifier | |||||||||||||
| Main Parameters | Unit | ZCB-D/Z -2000 |
ZCB-D/Z -3000 |
ZCB-D/Z -4000 |
ZCB-D/Z -5000 |
ZCB-D/Z -6000 |
ZCB-D/Z -8000 |
ZCB-D/Z -10000 |
ZCB-D/Z -12000 |
ZCB-D/Z -15000 |
ZCB-D/Z -20000 |
ZCB-D/Z -25000 |
|
| Process Airflow | m³/h | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 | |
| Reactivation Airflow | m³/h | 670 | 1000 | 1330 | 1670 | 2000 | 2670 | 3330 | 4000 | 5000 | 6670 | 8350 | |
| Supply Air Parameters | – | Temperature (T) = 15 ~ 25℃ Relative Humidity (RH) = 10% ~ 30% | |||||||||||
| Reactivation heater Power |
Electric | kW | 12 | 18 | 24 | 30 | 36 | 54 | 66 | 84 | 108 | 144 | 180 |
| Steam | kg/h | 30 | 45 | 60 | 75 | 90 | 110 | 140 | 170 | 215 | 285 | 360 | |
| Steam Pipe Diameter | mm | DN20 | DN20 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | |
| Chilled Water T | ℃ | T ≤ 7℃ | |||||||||||
| Consumption | t/h | 5 | 10 | 12 | 15 | 20 | 25 | 30 | 35 | 45 | 60 | 75 | |
| Water Pipe | mm | DN40 | DN40 | DN40 | DN50 | DN50 | DN50 | DN65 | DN65 | DN65 | DN80 | DN80 | |
| Reg. Fan Power | kW | 0.75 | 1.10 | 1.10 | 1.50 | 1.50 | 2.20 | 2.20 | 3.00 | 5.50 | 7.50 | 7.50 | |
| Process Fan Power | kW | 2.20 | 3.00 | 4.00 | 5.50 | 5.50 | 7.50 | 11 | 11 | 15 | 18.50 | 22 | |
| Rotor Motor Power | kW | 0.10 | 0.10 | 0.10 | 0.10 | 0.10 | 0.10 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | |
| Power Supply | – | 3P – 380V – 50Hz（Can be customized） | |||||||||||
| Max. Power | Electric | kW | 15.02 | 22.20 | 29.20 | 37.10 | 43.10 | 63.80 | 79.40 | 98.20 | 128.70 | 170.20 | 209.70 |
| Steam | kW | 3.05 | 4.20 | 5.20 | 7.10 | 7.10 | 9.80 | 13.40 | 14.20 | 20.70 | 24.20 | 29.70 | |
| Fresh Air Inlet | mm | 250×200 | 320×250 | 400×250 | 500×250 | 500×320 | 630×320 | 800×320 | 800×400 | 1000×400 | 1000×500 | 1250×500 | |
| Return Air Inlet | mm | 250×200 | 320×250 | 400×250 | 500×250 | 500×320 | 630×320 | 800×320 | 800×400 | 1000×400 | 1000×500 | 1250×500 | |
| Process Air Outlet | mm | 400×250 | 500×300 | 630×320 | 800×320 | 800×400 | 800×500 | 1000×500 | 1000×630 | 1250×630 | 1250×800 | 1600×800 | |
| Reactivation Air Inlet | mm | 400×300 | 550×350 | 550×400 | 550×450 | 650×450 | 750×500 | 750×550 | 800×500 | 800×550 | 850×550 | 850×650 | |
| Reactivation Air Outlet | mm | 160×125 | 208×162 | 208×162 | 233×183 | 233×183 | 260×228 | 262×204 | 262×204 | 302×234 | 332×257 | 487×340 | |
| Available static pressure | Pa | ≧650 | |||||||||||
| Overall Dimensions |
Length (L) | mm | 5200 | 5200 | 5200 | 5200 | 5700 | 5850 | 5850 | 6000 | 6200 | 6250 | 6500 |
| Width (W) | mm | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1700 | 1900 | 2100 | |
| Height (H) | mm | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1850 | 2000 | 2200 | 2400 | 2600 | |
| Weight | kg | 1150 | 1450 | 1600 | 1800 | 2000 | 2200 | 2400 | 2700 | 2800 | 3200 | 3500 | |
Product Overview
The desiccant rotor dehumidification unit works based on continuous adsorption and regeneration technology.
Moisture in the air is absorbed by the desiccant wheel and removed through a regeneration process, enabling stable low humidity and low dew point air supply for industrial environments.
Technical Notes
- All performance data are based on standard air volume models and may vary depending on project conditions.
- Test conditions: inlet air temperature 35°C, relative humidity 65%, regeneration temperature 120±10°C.
- Specifications and configurations may be customized according to project requirements.
Key Features
1. Precise Humidity Control
Provides stable and accurate humidity regulation according to industrial process requirements.
2. High-Efficiency Desiccant Rotor Technology
Uses imported silica gel rotor with strong moisture adsorption capacity, high efficiency, and long service life.
3. Ultra Low Dew Point Performance
Achieves relative humidity below 20% RH and dew point temperatures down to -20°C or lower, suitable for ultra-dry industrial environments.
4. Energy-Saving Regeneration System
Equipped with heat recovery technology to improve energy efficiency and reduce long-term operating costs.
5. Modular Design Structure
Aluminum alloy frame with double-layer insulated panels ensures durability, thermal efficiency, and easy maintenance.
6. Industrial-Grade Anti-Corrosion Design
Stainless steel components (SS304) are used in key parts for enhanced corrosion resistance and long-term stability.
7. Intelligent PLC Control System
Real-time monitoring, automatic operation, and remote control support for optimized system management.
8. Multiple Regeneration Heating Options
- Electric heating regeneration
- Steam heating regeneration
- Thermal oil heating regeneration
Functional Sections
- Fresh air pre-filtration section
- Fresh air cooling section
- Return air mixing section
- Primary filtration section
- Pre-cooling section
- Desiccant rotor dehumidification section
- Regeneration heating section
- Post cooling / heating section
- Air supply and airflow balancing section
- PLC intelligent control system
Advantages
- Integrated temperature, humidity, and air quality control
- Suitable for 24/7 continuous industrial operation
- Modular structure for easy installation and maintenance
- Energy-efficient and cost-effective operation
- Custom design available for non-standard projects
- Compatible with cleanrooms and production lines
- Long service life and stable performance
Applications
- Lithium battery manufacturing and drying rooms
- New energy material production facilities
- Semiconductor and electronics manufacturing
- Pharmaceutical and GMP cleanrooms
- Biotechnology laboratories
- Food processing and packaging plants
- Aerospace and defense industries
- Precision instrument manufacturing
- Scientific research facilities
- Large-scale storage and logistics centers
Technical Advantages
The modular desiccant rotor dehumidification system combines adsorption dehumidification, thermal processing, and air purification to provide full environmental control.
It effectively prevents condensation, corrosion, moisture damage, and process instability in industrial production environments.
It is especially suitable for industries requiring ultra-low humidity control such as lithium battery electrode production, semiconductor packaging, and pharmaceutical cleanrooms.
Why Choose Our Desiccant Rotor Dehumidification System
- Over 19 years of industrial humidity control experience
- Advanced desiccant rotor core technology
- Customized system design and integration capability
- Stable performance for continuous industrial operation
- Professional engineering and after-sales support
- Complete turnkey HVAC & humidity control solutions
We provide a complete solution including system design, manufacturing, installation, commissioning, and maintenance,
delivering efficient, stable, and energy-saving industrial air handling systems for global customers.
