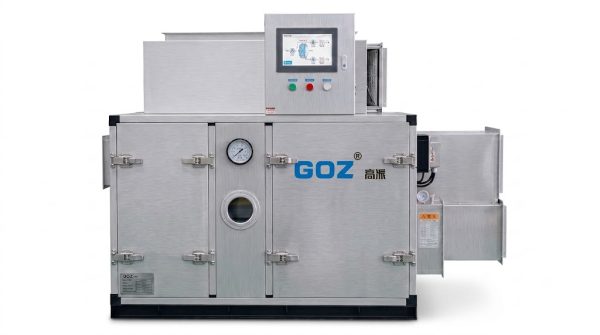

Desiccant Dehumidifier
Product Overview
The Standard Rotary Desiccant Dehumidifier adopts advanced desiccant rotor technology and is designed for medium and large industrial spaces requiring stable humidity control and continuous low humidity operation.
The high-performance silica gel rotor continuously adsorbs moisture from the air, while the reactivation system removes the absorbed moisture to achieve continuous and efficient dehumidification. The unit maintains reliable dehumidification performance under low temperature and high humidity conditions.
This industrial desiccant dehumidifier is widely used in shipbuilding, sandblasting and painting workshops, lithium battery manufacturing, electronics production, pharmaceutical cleanrooms, warehouses and other industrial humidity control applications.
Product Parameters
| Model | Process air-flow |
Reg.air-flow | DEH Capacity (20℃，60%) |
Reg. Heating Power |
Rotor Motor |
Reg. Fan Power |
Process Fan Power |
Max. Power Input | Dimension | ||||
| m³/h | m³/h | kg/h | Electric kw |
Steam kg/h |
kw | kw | kw | E kw | S kw | L mm | W mm | H mm | |
| GZB-2100 | 2100 | 735 | 15.1 | 18 | 40.08 | 0.1 | 0.75 | 0.85 | 19.7 | 1.7 | 1650 | 800 | 1250 |
| GZB-3000 | 3000 | 990 | 21.6 | 27 | 55.11 | 0.1 | 1.1 | 3 | 31.2 | 4.2 | 1650 | 800 | 1250 |
| GZB-4200 | 4200 | 1390 | 30.2 | 37 | 76.82 | 0.1 | 1.5 | 4.5 | 43.1 | 6.1 | 2550 | 1050 | 1750 |
| GZB-5000 | 5000 | 1650 | 36 | 47 | 95.19 | 0.1 | 2.2 | 5 | 54.3 | 7.3 | 2550 | 1050 | 1750 |
| GZB-6400 | 6400 | 2110 | 46.1 | 58 | 118.57 | 0.1 | 2.2 | 5.5 | 65.8 | 7.8 | 2550 | 1050 | 1750 |
| GZB-7750 | 7750 | 2560 | 55.8 | 69 | 143.62 | 0.1 | 2.5 | 7.5 | 79.1 | 10.1 | 2550 | 1250 | 1750 |
| GZB-10500 | 10500 | 3470 | 75.6 | 96 | 195.39 | 0.1 | 3 | 11 | 110.1 | 14.1 | 2550 | 1250 | 1750 |
| GZB-13200 | 13200 | 4360 | 95 | 121 | 245.49 | 0.1 | 4 | 13.2 | 138.3 | 17.3 | 2550 | 1250 | 1750 |
| GZB-15800 | 15800 | 5210 | 113.8 | 145 | 293.92 | 0.1 | 5 | 15 | 165.1 | 20.1 | 2550 | 1550 | 1890 |
| GZB-21000 | 21000 | 6930 | 151.2 | 195 | 392.45 | 0.1 | 7.5 | 18 | 220.6 | 25.6 | 2750 | 2050 | 1890 |
| GZB-26000 | 26000 | 8810 | 192.2 | 235 | 472.61 | 0.1 | 7.5 | 18 | 260.6 | 25.6 | 2950 | 2250 | 2350 |
| GZB-30000 | 30000 | 10500 | 202.3 | 245 | 497.66 | 0.1 | 11 | 23.5 | 279.6 | 34.6 | 2950 | 2250 | 2350 |
| GZB-35000 | 35000 | 12250 | 244.8 | 259 | 522.71 | 0.1 | 11 | 25 | 295.1 | 36.1 | 2950 | 2250 | 2350 |
| GZB-40500 | 40500 | 13370 | 291.6 | 315 | 632.93 | 0.1 | 15 | 30 | 360.1 | 45.1 | 3250 | 2550 | 2580 |
| GZB-45000 | 45000 | 15520 | 316.8 | 375 | 753.17 | 0.1 | 15 | 37 | 427.1 | 52.1 | 3250 | 2550 | 2580 |
| GZB-51000 | 51000 | 16830 | 367.2 | 405 | 818.3 | 0.1 | 15 | 45 | 465.1 | 60.1 | 3450 | 2550 | 2780 |
| GZB-59000 | 59000 | 19470 | 424.8 | 475 | 953.57 | 0.2 | 15 | 55 | 545.2 | 70.2 | 3450 | 3250 | 3150 |
| GZB-65000 | 65000 | 21450 | 468 | 545 | 1100.53 | 0.2 | 18 | 55 | 618.2 | 73.2 | 3450 | 3250 | 3150 |
Product Features
Industrial Grade Design
Designed for continuous industrial operation with a robust structure, ensuring stable performance and long service life in demanding environments.
High Efficiency Desiccant Rotor System
Equipped with a high-performance silica gel desiccant rotor, the system provides continuous moisture removal and effective low humidity and low dew point control.
Stable Operation Under Low Temperature Conditions
Unlike conventional refrigeration dehumidifiers, the desiccant system is not affected by condensation or frosting issues and maintains stable performance in cold or high humidity environments.
High Airflow Capacity
Suitable for medium and large spaces with a wide range of airflow configurations to meet different industrial air treatment requirements.
Energy Optimized Reactivation System
Optimized airflow design and efficient reactivation heating technology help reduce operating energy consumption and improve overall system efficiency.
Modular Structure
The modular cabinet design simplifies transportation, installation and maintenance while providing flexible customization options.
Product Advantages
- Industrial-grade low humidity and low dew point control
- Suitable for large spaces and continuous operation
- High dehumidification efficiency under low temperature conditions
- No condensation or frosting problems
- Designed for 24/7 continuous operation
- Reliable structure for harsh industrial environments
- Customized solutions available according to project requirements
Applications
- Shipbuilding and marine coating workshops
- Sandblasting and painting facilities
- Lithium battery production and dry rooms
- Electronics manufacturing and semiconductor factories
- Pharmaceutical GMP cleanrooms
- Food processing and packaging facilities
- Military and precision equipment storage
- Large warehouses and logistics centers
- Industrial drying rooms and low humidity environments
Technical Advantages
The Standard Rotary Desiccant Dehumidifier provides precise humidity and dew point control, helping prevent moisture-related problems such as metal corrosion, coating defects, product damage and equipment failures.
For shipyard sandblasting and painting applications, the system improves surface treatment quality, reduces flash rust risks, enhances coating adhesion and increases production efficiency.
Why Choose Our Standard Rotary Desiccant Dehumidifier
- Professional desiccant rotor dehumidification technology
- Reliable performance for continuous industrial operation
- High airflow design for various industrial applications
- Energy efficient operation with optimized system design
- Customized engineering and system integration capability
- Extensive industrial project experience
- Professional technical support and selection service
We provide complete desiccant dehumidification solutions including airflow design, dew point control and customized system integration services for different industrial applications.
